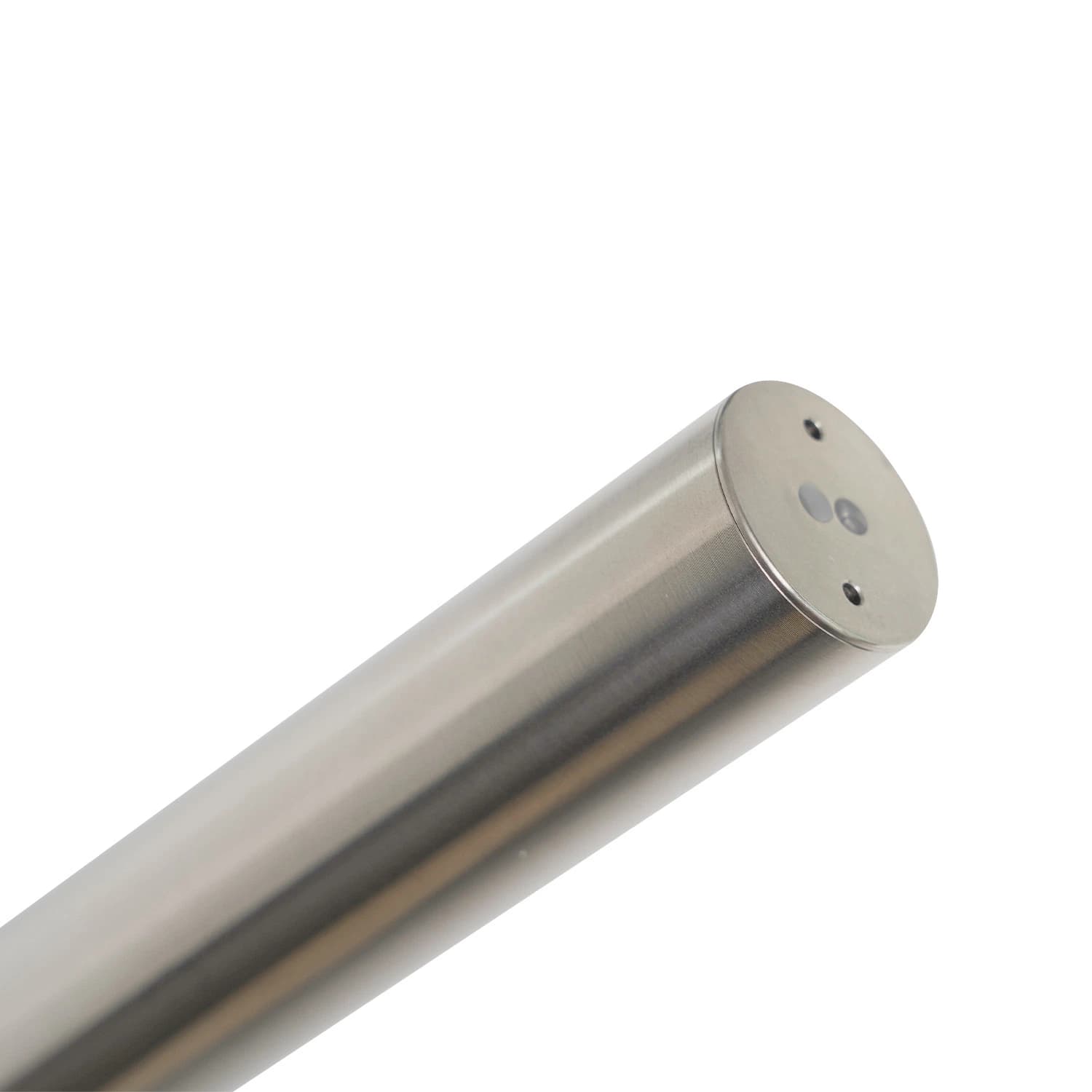

Real-time TSS Sensor, photo 1 of 2

Oxen · Water Environment Sensor

Real-time TSS Sensor

The Real-time TSS sensor is a high-precision instrument designed for continuous water monitoring. Utilizing advanced optical technology and a 90° scattered light measurement. This PUB-approved sensor is a customise optical devices, compact size, and easy installation and maintenance, minimizing ambient light interference for better repeatability and stability. Built to withstand harsh environments, The Real-time TSS sensor offers reliable long-term deployment with minimal maintenance, making it ideal for environmental monitoring, water treatment, and industrial applications, seamlessly integrating into existing data acquisition systems for effective water quality management.

Get a quote

Overview

  • Advanced Optical Technology

    Utilizes a 90° scattered light measurement principle, in compliance with ISO7027 standards, for precise and reliable turbidity measurements.

  • Compact and Robust Design

    Features a small size for easy installation and a durable build to withstand harsh environmental conditions, ensuring long-term reliability.

  • Real-Time Monitoring

    Provides continuous, accurate real-time turbidity data essential for effective water quality management.

  • Minimal Maintenance

    Engineered to reduce maintenance needs, with design elements that help prevent fouling and ensure stable performance over time.

  • Ambient Light Interference Resistance

    Custom optical devices minimize the impact of ambient light, enhancing measurement repeatability and stability.

  • PUB Approved

    Recognized by the Public Utilities Board (PUB), ensuring high standards of quality and performance.

  • Easy Integration

    Seamlessly integrates with existing data acquisition systems for comprehensive and efficient water quality monitoring.

  • Wide Application Range

    Ideal for environmental monitoring, water treatment plants, wastewater management, and various industrial processes.

Specifications

Product Specification13 items
Principle
90° light scattering method
Range
0.1~1000 mgl
Resolution
5% or 0.3 mgl
Housing IP Rating
IP68
Maximum pressure
6bar
Temperature range
0 ~ 50℃
Sensor interface
Support RS-485，Modbus protocols
Power Requirements
DC 5~24V,current <50mA
Sensor Size
Φ22mm*175.5mm
Construction
M22*1.5 (optional accessories can be transferred, NPT3/4 thread)
Probe cable length
5m (default), customizable
Sensor material
Ti
Calibrate
Zero-point, one-point or two-points calibration
