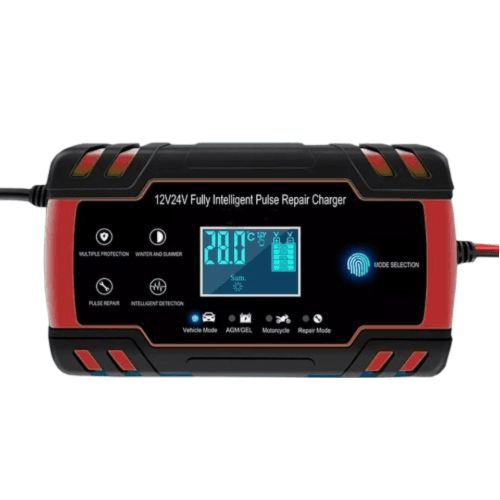

LCD Battery Charger, photo 1 of 2

Oxen · Solar Charge Controllers

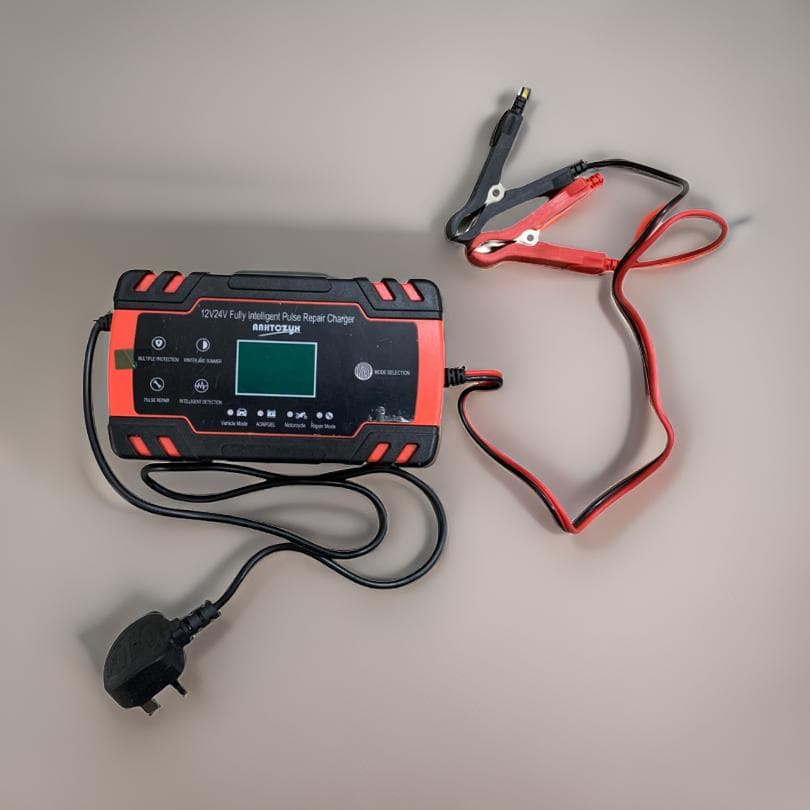

LCD Battery Charger

  • LCD

This advanced battery charger features a clear LCD screen for real-time monitoring of charging status, voltage, and current. It operates fully automatically, adjusting its parameters for optimal performance based on the battery type. Equipped with multiple protection features, including overcharge, short-circuit, temperature control, and reverse polarity safeguards, it ensures safe and efficient charging.

Get a quote

Overview

  • LCD Screen

    Displays real-time information on charging status, battery voltage, current, and other vital metrics.

  • Fully Automatic Operation

    Adjusts charging parameters based on battery type and condition for optimal performance without manual intervention.

  • Overcharge Protection

    Prevents damage by automatically stopping charging when the battery is fully charged.

  • Short-Circuit Protection

    Safeguards the charger and battery from damage caused by short circuits.

  • Temperature Control

    Monitors and regulates temperature to prevent overheating and ensure safe operation.

  • Reverse Polarity Protection

    Guards against incorrect battery connections, preventing potential damage.

  • Wide Compatibility

    Suitable for various battery types, including Lead-acid, AGM, GEL, and Wet batteries, offering versatility for different applications.

Specifications

12V/24V 8A Touch Screen Pulse Repair LCD Battery Charger10 items
Input voltage
100V-265V AC, 50-60Hz
Rated output
12V 8A / 24V 4A
Minimum start voltage
2.0V
Battery range
2Ah-150Ah
Thermal protect
65°C+/-5°C
Efficiency
App. 85%
Cooling
Fan
Weight
560g
Dimension (L*W*H)
170mm*98mm*58mm
Scope of application
12V/24V 2Ah-150Ah Lead-acid batteries/start-up and shutdown batteries Including lithium batteries can be charged
