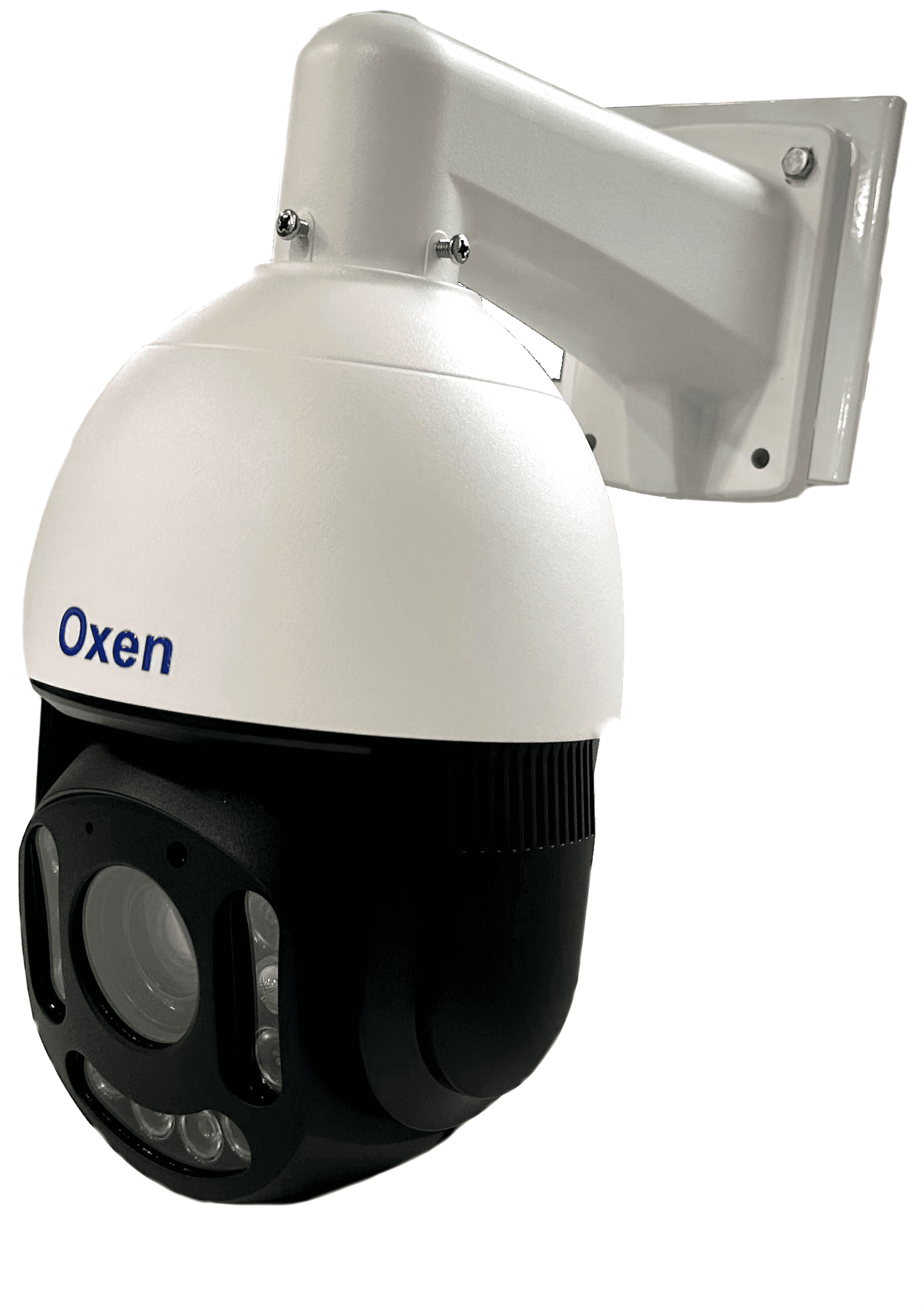

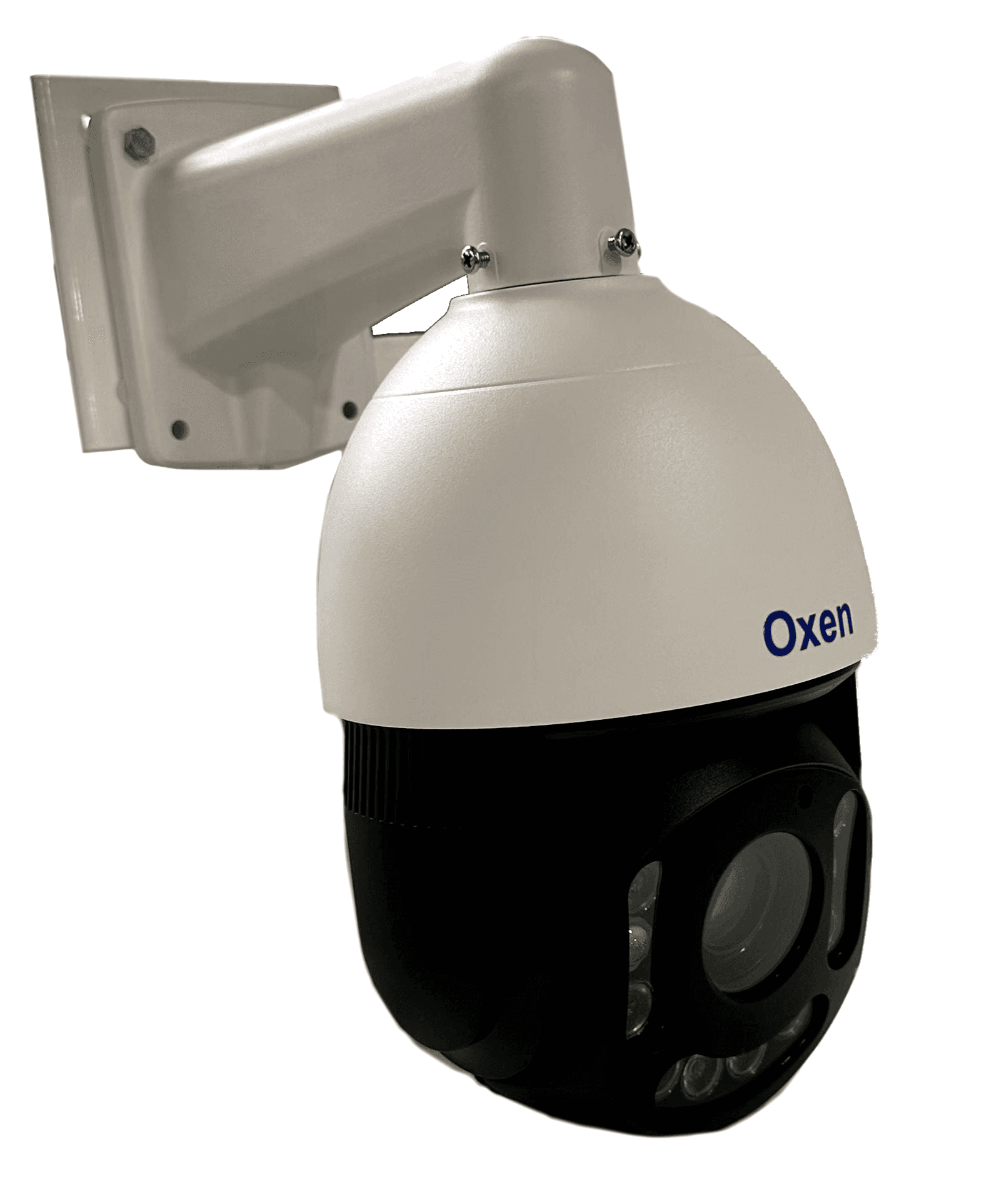

Oxen 5MP PoE PTZ Camera
The Oxen P10 camera is a high-performance PTZ (Pan-Tilt-Zoom) surveillance camera module designed for professional monitoring and security applications. It features advanced optical zoom for capturing clear images at long distances, full 360° pan and tilt for wide area coverage, and robust night vision capabilities for clear footage even in low-light or total darkness. Built to withstand harsh outdoor conditions with an IP66/IP67 rating, the P10 camera module also supports motion detection and smart tracking features, making it ideal for security in large, outdoor areas such as parking lots, stadiums, and public spaces.
Overview
Optical Zoom
Equipped with high-powered optical zoom, allowing clear and detailed viewing of distant objects without sacrificing image quality.
360° Pan and Tilt
The camera offers full 360° panning and a wide tilt range, ensuring complete coverage of large areas, ideal for comprehensive surveillance.
Night Vision
Built-in infrared LEDs enable clear footage in low-light and complete darkness, extending surveillance capability around the clock.
Weatherproof Design
With an IP66/IP67 rating, the camera is protected against dust and heavy rain, making it suitable for outdoor use in harsh environments.
Smart Motion Detection
Advanced motion detection sensors help trigger alerts when movement is detected, enhancing the effectiveness of security monitoring.
Remote Access
Compatible with mobile and web-based apps, enabling users to control the camera and monitor footage from anywhere in real time.
ONVIF Compatibility
Integrates seamlessly with other ONVIF-compliant devices, providing flexibility in building a comprehensive security system.
Specifications
5MP PoE PTZ Camera - High-Resolution Outdoor Security Camera with Power over Ethernet20 items
- Camera Type
- PTZ (Pan-Tilt-Zoom)
- Resolution
- 1080p Full HD (1920 x 1080), with some models offering up to 4K Ultra HD
- Field of View
- Horizontal: 60° to 2.8° (depending on zoom)
- Pan Range
- 360° continuous rotation
- Tilt Range
- -15° to 90° tilt with auto-flip
- Pan Speed
- 0.1°/s to 300°/s
- Tilt Speed
- 0.1°/s to 120°/s
- IR Distance
- Up to 100 meters
- Day/Night Mode
- True Day/Night (IR Cut Filter)
- Compression
- H.264/H.265 video compression for efficient storage
- Minimum Illumination
- Color: 0.05 lux, B/W: 0.01 lux, 0 lux with IR on
- Ingress Protection
- IP66/IP67 weatherproof rating
- Operating Temperature
- -40°C to 60°C (-40°F to 140°F)
- Power Supply
- 12V DC or PoE (Power over Ethernet)
- Storage
- MicroSD card support, up to 256 GB
- Smart Features
- Motion detection, auto-tracking, zone-based detection
- Network Protocols
- ONVIF, RTSP, HTTP, HTTPS, FTP, DHCP, TCP/IP
- Connectivity
- RJ-45 Ethernet port
- Audio
- 1 input, 1 output
- Weight
- Approx. 2.5 kg
